Hex Socket Cup Head Screws: Professional Industry Knowledge Guide

Why the Cup Head Profile Outperforms Flat and Pan Heads in Clamping-Critical Joints

The cylindrical cup head geometry of a socket head cap screw is not an aesthetic choice — it is a functional design that delivers measurably superior clamping performance compared to flat countersunk or pan head configurations in the same thread size. The tall, straight-sided head allows a significantly larger bearing surface diameter relative to the screw shank, which distributes the clamping force over a greater area of the joint face and reduces surface pressure beneath the head. This matters in joints assembled from softer materials — aluminum alloys, engineering plastics, magnesium, and composite laminates — where a smaller-bearing-area head would indent into the surface under repeated tightening cycles, progressively reducing preload and causing joint relaxation.

The head height itself contributes directly to torsional rigidity during installation. The tall cup head provides more sidewall contact for the socket tool, improving torque transfer efficiency and reducing the risk of cam-out that plagues shallower head profiles. For precision assemblies where target clamp load must be achieved reliably using torque-controlled tooling — such as in optical instruments, semiconductor equipment, and medical devices — the consistent socket engagement of a cup head screw reduces torque-to-preload scatter compared to alternatives, giving engineers tighter control over joint behavior across a production batch.

Hex Socket Size Standards and the Consequences of Non-Conforming Key Fits

The internal hex socket of a cup head screw must conform to precise dimensional standards to ensure reliable torque transmission without socket damage. ISO 4762 defines the nominal hex key sizes and associated socket tolerances for metric socket head cap screws, while ASME B18.3 governs the equivalent inch-series specifications. These standards specify not only the across-flats (AF) dimension of the hex socket but also the minimum socket depth, the chamfer angle at the socket entry, and the allowable tolerance on socket geometry — all of which affect how completely a hex key engages the socket walls during torque application.

When a hex key that is even 0.05mm undersize engages an ISO-conforming socket, the contact shifts from full flank bearing to corner-only bearing, concentrating the torque load on six small contact points instead of six full flank faces. This increases contact stress by a factor of three to five, which is sufficient to plastically deform the socket corners on the first installation in a Grade 8.8 screw and causes progressive rounding on harder Grade 12.9 screws after repeated use. The practical implication is straightforward: hex keys must be replaced when worn, and economy-grade hex key sets should never be used on precision socket head cap screws in structural or safety-critical assemblies.

Grade 12.9 vs Grade 10.9 Socket Head Cap Screws: Knowing When Higher Strength Creates New Risks

Grade 12.9 is the highest standard property class for metric socket head cap screws, with a minimum tensile strength of 1220 MPa and a proof load stress of 1100 MPa. However, specifying Grade 12.9 without considering the full joint context introduces risks that Grade 10.9 would avoid. The primary risk specific to Grade 12.9 is hydrogen embrittlement susceptibility. The high surface hardness achieved through heat treatment makes Grade 12.9 screws significantly more vulnerable to hydrogen-induced delayed fracture than Grade 10.9, particularly when electroplated finishes are applied.

For this reason, Grade 12.9 socket head cap screws should only be finished with mechanical plating, physical vapor deposition (PVD) coatings, or hot-dip processes that do not introduce hydrogen, and acid-based cleaning should be followed by a mandatory hydrogen embrittlement relief bake at 190–220°C for a minimum of four hours before any coating is applied. Additionally, in aluminum-to-aluminum joints, the increased clamp load from Grade 12.9 often exceeds the compressive yield strength of the aluminum at the bearing surface, causing permanent head embedment that eliminates all preload after the first thermal cycle. In such joints, Grade 10.9 with a hardened washer consistently delivers better long-term joint integrity.

Counterbore Specifications: Ensuring Full Head Seating and Tool Access Clearance

One of the defining advantages of socket head cap screws over external-hex bolts is their ability to seat fully within a counterbored hole, leaving a flush or sub-flush surface. Achieving this requires the counterbore to be machined to the correct diameter, depth, and positional tolerance. Key dimensional relationships to maintain in counterbore design include:

• Counterbore diameter: Should be the nominal head diameter plus 0.3mm to 0.5mm for standard clearance fit, or plus 0.1mm to 0.2mm for close-fit applications where head lateral positioning must be controlled.
• Counterbore depth: Must be at least equal to the full nominal head height. Under-depth counterbores leave the head proud of the surface, which negates the flush-fitting purpose and creates a stress concentration at the edge of the counterbore under lateral loading.
• Hex key access clearance: The space above the screw head must accommodate the full insertion depth of the hex key — typically 1.5 to 2 times the hex key length for a standard L-key.
• Counterbore bottom flatness: A non-flat counterbore bottom causes the screw head to rock during tightening, producing inconsistent clamp load distribution. Counterbore bottom flatness should be held within 0.02mm for precision joints.

Stainless Steel Socket Head Cap Screws: Galling Prevention in Practice

Galling — the cold-welding of mating stainless steel surfaces under sliding contact pressure during installation — is the most frequently encountered failure mode when assembling stainless socket head cap screws into stainless threaded holes. The mechanism is driven by the breakdown of the passive oxide layer on stainless steel under the contact pressure of thread engagement, exposing bare metal surfaces that immediately bond to each other. Preventing galling requires addressing both the material surface condition and the installation process:

• Anti-seize compound application: MoS₂ paste or nickel-based anti-seize applied to the screw threads before installation creates a lubricating barrier. Note that anti-seize reduces the effective friction coefficient by 30% to 50%, requiring a corresponding reduction in installation torque to avoid over-tensioning.
• Material grade differentiation: Using A4-80 (316 stainless) screws in A2 (304 stainless) tapped holes introduces a small compositional difference that disrupts the galling mechanism.
• Controlled installation speed: Power tool installation of stainless screws should use the lowest speed setting available, with final torquing done by hand. High rotational speed generates frictional heat that dramatically increases galling probability.
• Thread class selection: Specifying a 6g/6H thread class (standard clearance fit) rather than a tighter 4h/4H class provides additional clearance between the screw and nut thread flanks, reducing contact pressure during run-down and lowering galling risk.

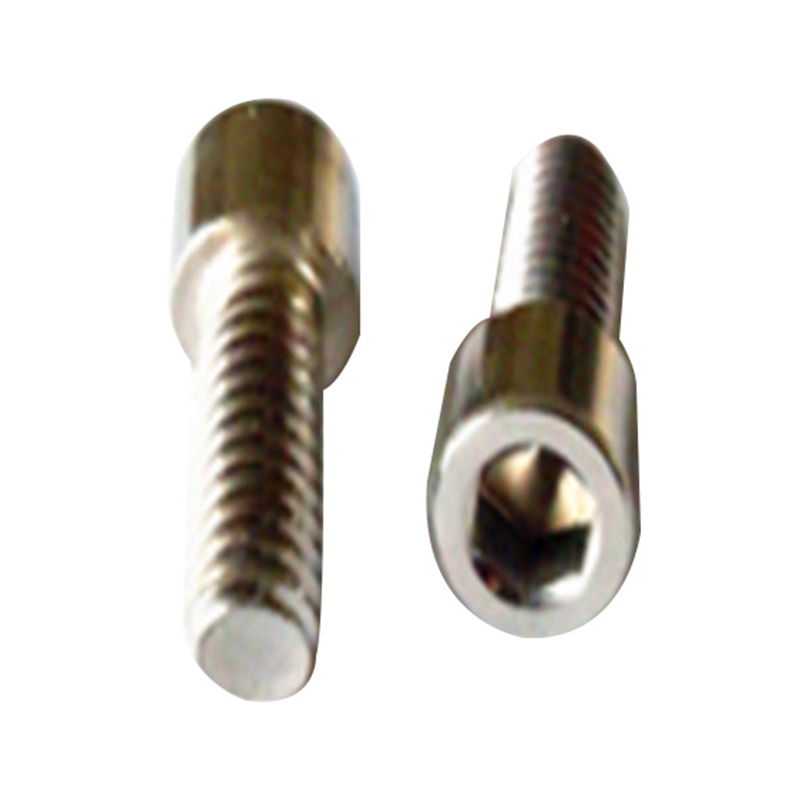

Low-Head and Thin-Head Socket Cap Screws: Applications, Trade-offs, and Specification Traps

Low-head socket cap screws feature a head height of approximately 60% of the standard ISO 4762 dimension for the equivalent thread size. The trade-off for the reduced head height is a shorter hex socket engagement depth, which directly limits the maximum torque that can be applied before socket strip-out. For an M4 low-head socket screw, the usable socket depth is typically 1.2mm to 1.5mm compared to 2.0mm for a standard head — a 30% to 40% reduction that translates into a corresponding reduction in maximum installation torque. Specifying low-head screws without adjusting the torque target is a common design error that results in either under-torqued joints or stripped sockets during assembly.

Button Head vs Low-Head: Understanding the Distinction

Button head socket cap screws are a separate product category that is frequently confused with low-head types. The button head features a large-diameter, low-profile domed head optimized for clamping load distribution and aesthetics. The low-head socket screw retains a cylindrical straight-sided head profile matched to a standard or slightly reduced counterbore diameter — it saves axial space above the joint surface while maintaining counterbore compatibility. Mixing up these two types during specification leads to counterbore mismatch, unexpected head protrusion, or insufficient bearing area for the intended load path. Suzhou Anzhikou produces both configurations in custom dimensions, including non-standard head heights that fall between the standard and low-head definitions.

Surface Treatment Selection for Hex Socket Cup Head Screws Across Different Service Environments

The surface treatment applied to a socket head cap screw affects not only its corrosion resistance but also its coefficient of friction, hydrogen embrittlement risk, dimensional growth over the base screw, and suitability for the end-use environment. The most widely used finishes for precision socket head cap screws include:

• Black oxide (blackening): Adds essentially zero dimensional growth and provides mild corrosion protection in dry indoor environments. Suitable for internal machine components, tooling fixtures, and optical mounts where low reflectivity is required.
• Zinc electroplating (clear or yellow chromate): Provides moderate corrosion resistance (72–96 hours salt spray for clear, 200+ hours for yellow chromate). Adds 5–10 microns per side and introduces hydrogen embrittlement risk on Grade 12.9 screws; requires bake relief.
• Mechanical zinc plating: Applies zinc through mechanical impact rather than electrochemical deposition, completely eliminating hydrogen uptake. The preferred alternative to electroplating for high-strength socket head cap screws.
• Dacromet / geomet coating: Provides 500+ hours salt spray resistance with no hydrogen risk and excellent chemical resistance to fuels, hydraulic fluids, and mild acids. Widely used in automotive and outdoor power equipment.
• Passivation (stainless steel only): Chemical passivation restores and strengthens the passive oxide layer on stainless socket screws, removing free iron contamination from the surface. Essential for stainless screws used in food processing, pharmaceutical, and marine applications.
